Characteristics
category
Platform
Comfort
Height adjustment
Security
Ergonomic head and footboard panels that help manoeuvring the bed
Complete with supports for accessories (IV drip rod, lifting pole, etc.)
Patient fixation support
Epoxy coated steel tube frame
Central brake: rubber wheels with retractable system
TOTAL PROTECT side rails: They offer perfect protection against falls. Compliant with EN 60 601-2-52. Made in vaporised beech
Four easily detachable ABS sections
Lifting systems supported by compasses that provide great stability and load of up to 230 kg. Allowing the free entry of the patient crane
Patient handset includes two options to place the bed into cardiac chair position
Patient handset with functions cancellation
Foot plane independent of the knee plane with mechanical articulation, providing greater ergonomics
Anti- decubitus system, with double regression of the trunk plane 11 cm and 7 cm of the leg plane
All materials used are non-toxic and biocompatible

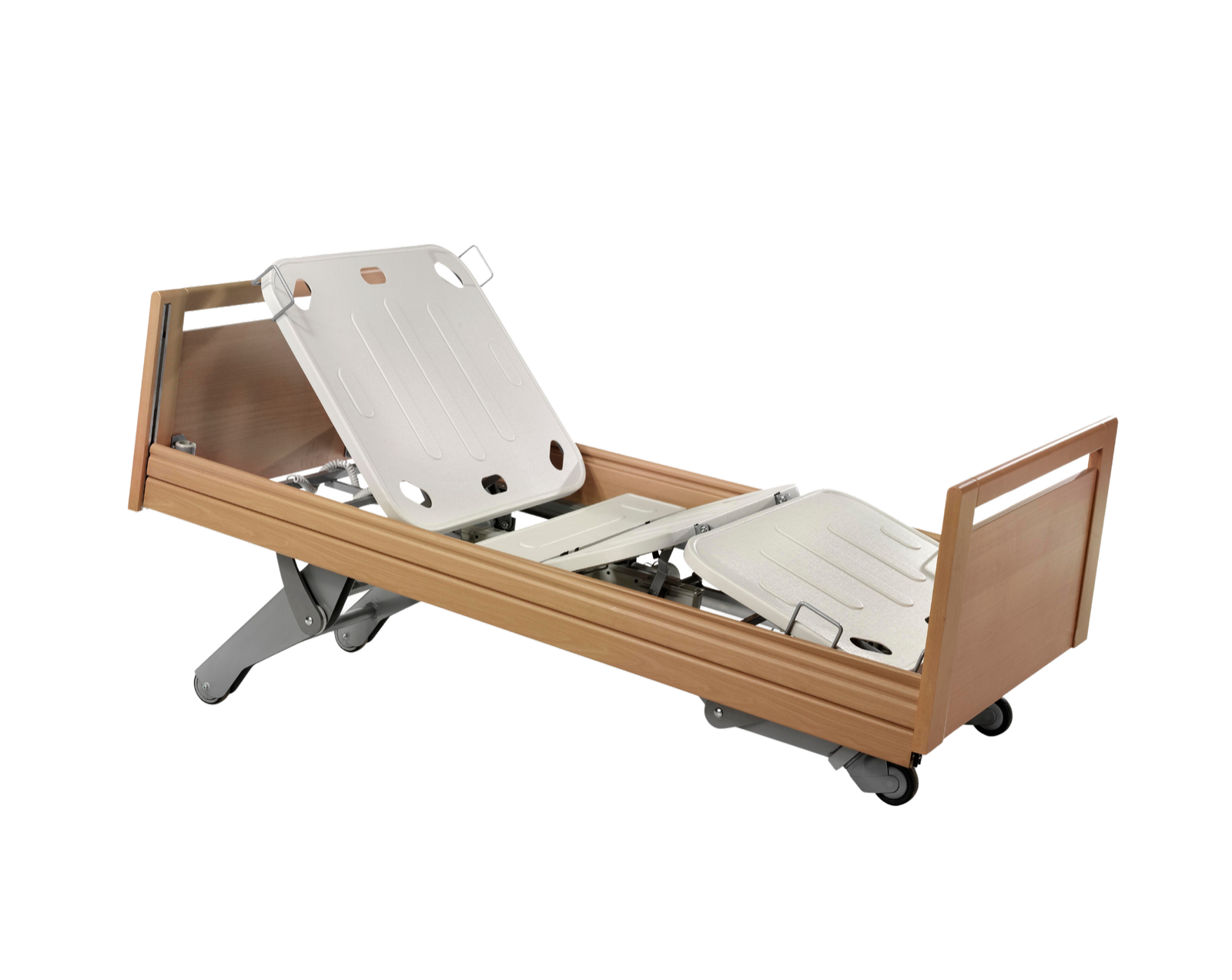

Tredelemburg, antitredelemburg (±16º) by electric drive

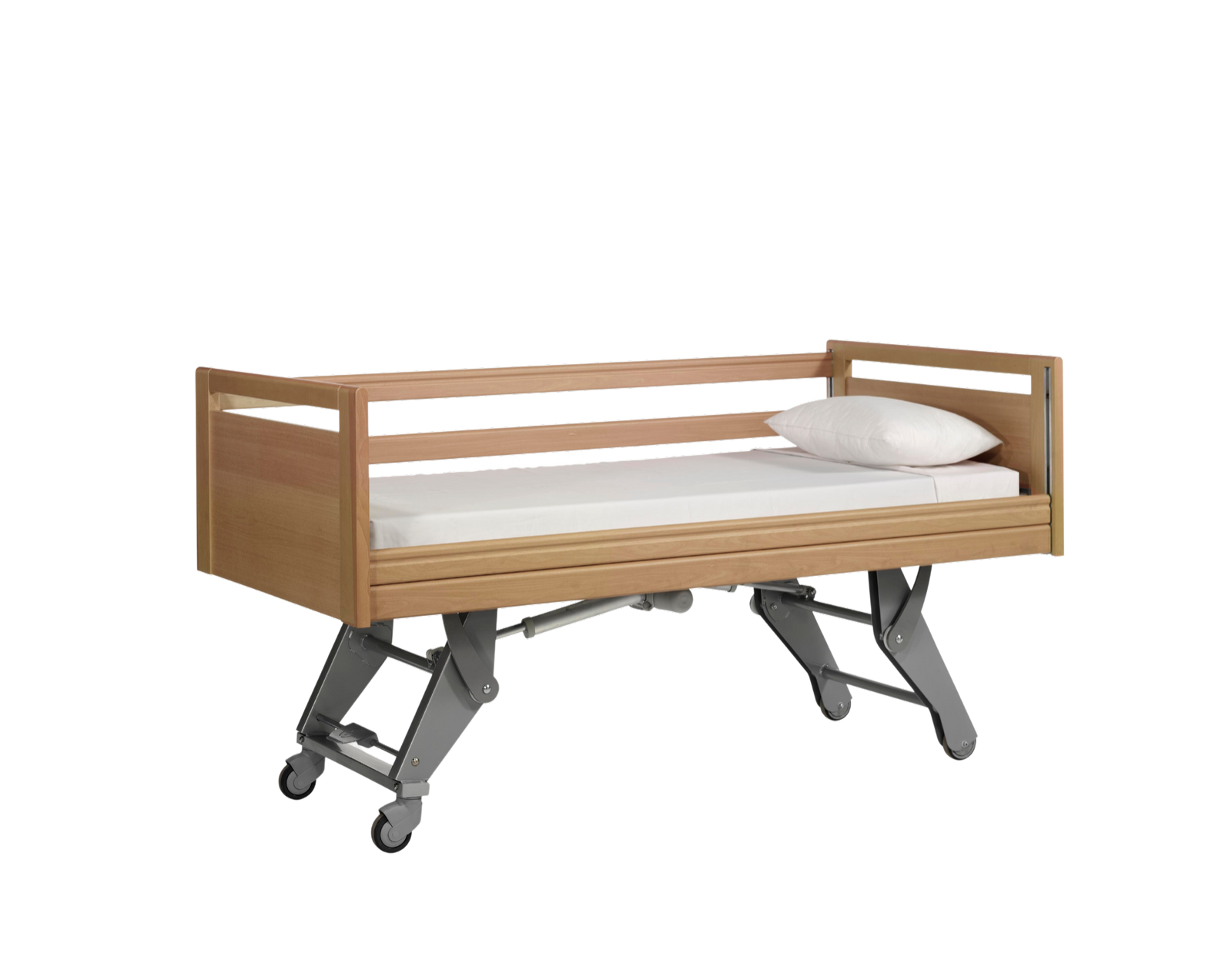

Maximum 68 cm: it can be raised up to 68 cm., which simplifies the interventions of daily bed care and the care staff can work ergonomically and with a relaxed back
Minimum 19 cm: it can be lowered to 19 cm for optimal prevention against the consequences of falls
Four wheels, two 75 mm directional wheels at the head and two 100 mm faired double wheels at the foot end with centralized braking system
Rechargeable lithium battery with autonomy of 200 cycles of uninterrupted use
Technical file
Technical data
- Overall dimensions: 206 X 104 cm
- Patient surface dimension: 200 x 86 cm
- Height adjustment: 19 x 68 cm
- Backrest angle: 70º
- Legrest angle: 30º
- Backrest regression: 11 cm
- Trendelenburg/reverse trendelenburg: ±16º
- Weight without accessories: 150 kg
- Maximum safe working load: 230 kg
Electric features
- Power supply: 230-110v / 50-60 Hz
- Maximum current intake: 1.6A, 370 Volt
- Protection indicator: IP 66
- Class of protection: Class ll
- Electric shock protection: TYPE B
Accessories
Urine bag holder
Lifting pole
IV pole
Normative
All products manufactured by MEDISA comply with Directive 2007/47/EEC on medical devices (Annex I and Annex VII)
All processes have been evaluated and certified according to the requirements of the UNE-EN ISO 9001:2008 standard for Quality Management and the UNE-EN ISO 14001:2004 standard for Environmental Management, and the UNE-EN ISO 13485 standard for medical devices. The quality management system
MEDISA products are subject to the standard: IEC 60601-1, IEC 60601-1-2, IEC 60601-2-52
Certified by Bureau Veritas
CERTIFICATES Nº ES047196-1 / ES047195-1
Scope: design, manufacture, marketing and technical assistance of hospital beds and armchairs. Marketing of hospital furniture
