Characteristics
category
Structure and Mattress base
Handling and comfort
Design
Height adjustment
Safety

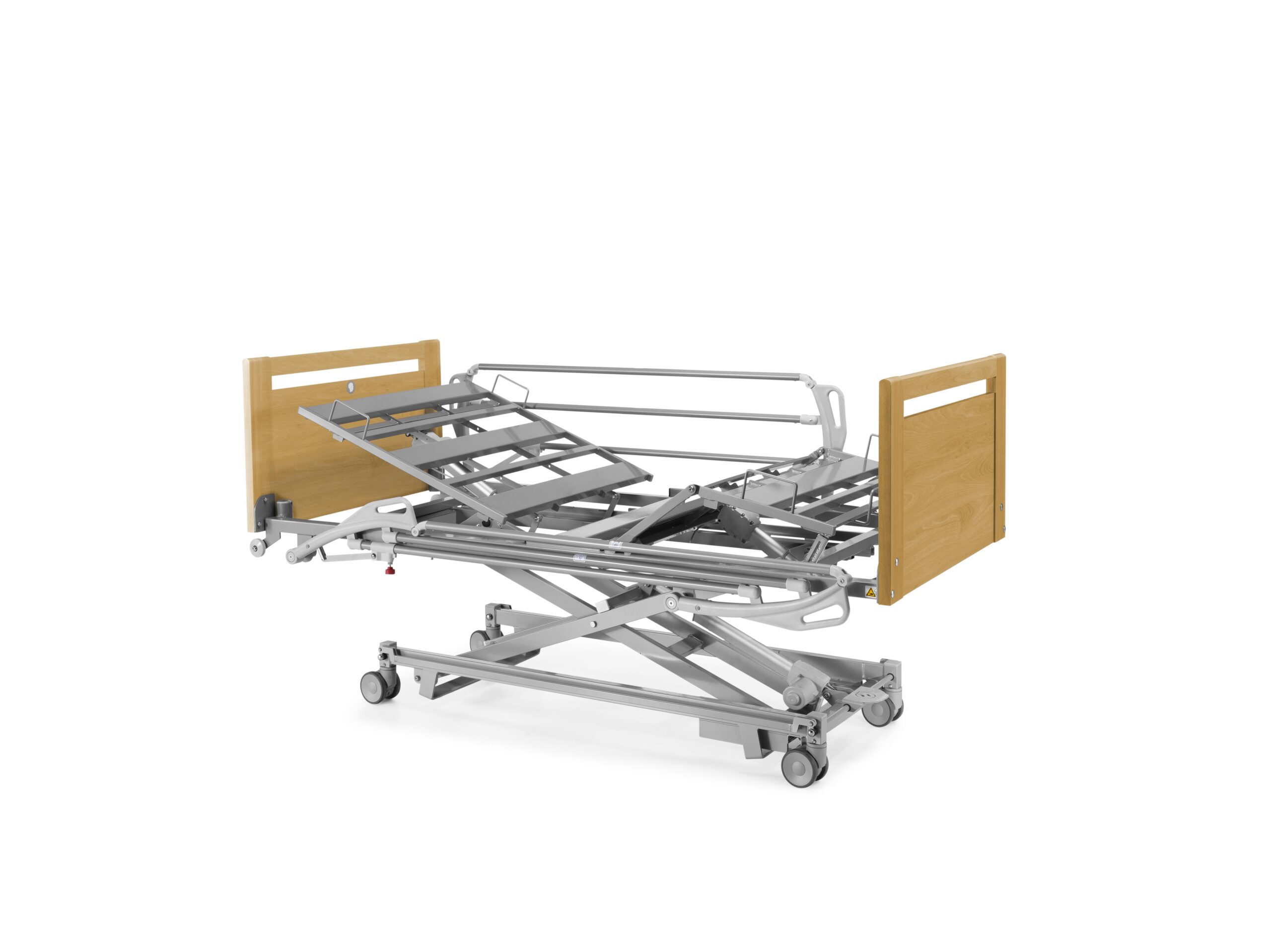

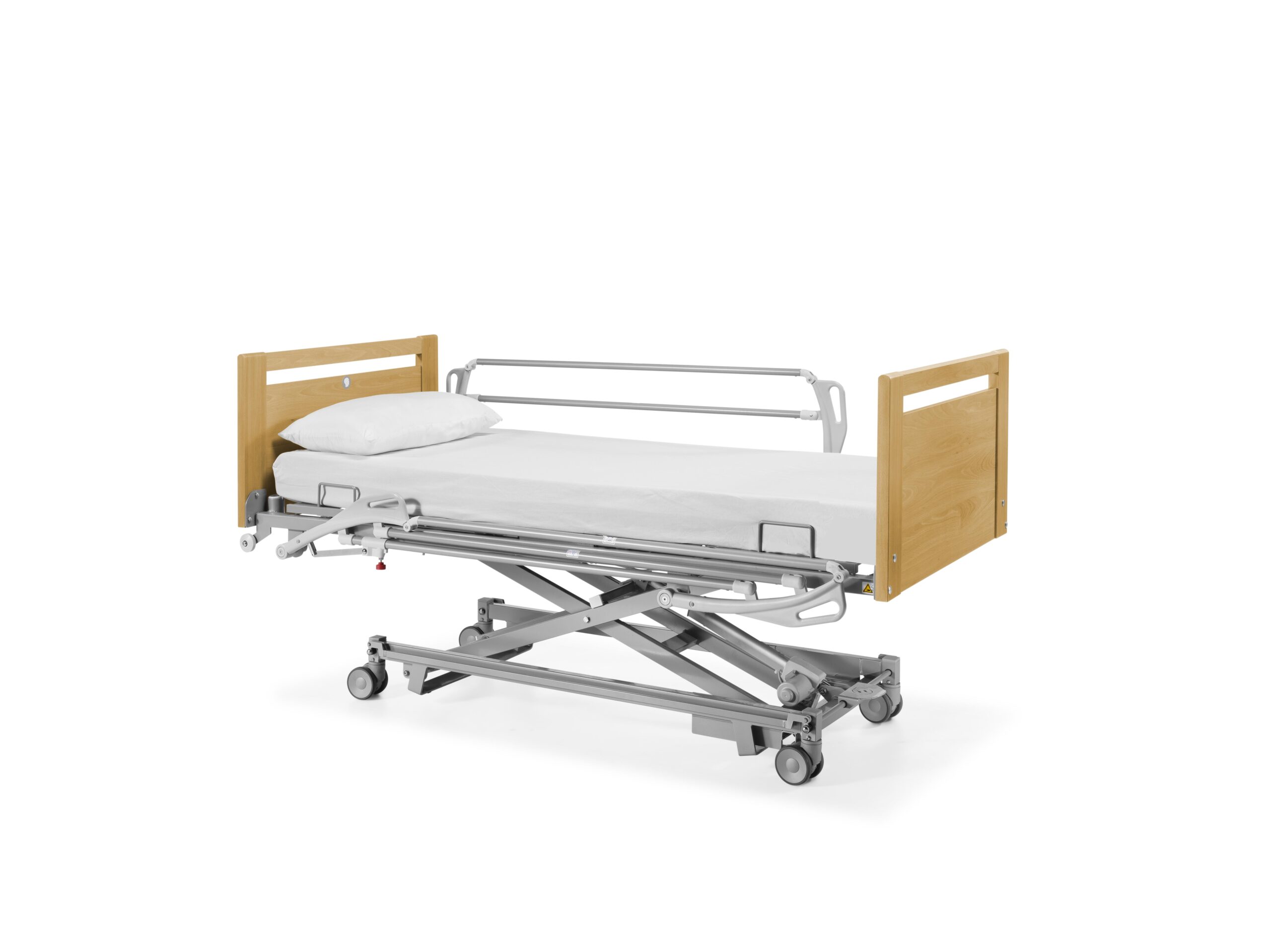

Metal structure frame in steel tube
Lifting system supported by compass and linear actuator
Two support points on each bed base structure, allowing the load to be distributed evenly for stability
Complete safety and straight up/down without lateral movement. Space for introduction of lifting cranes
Electrostatic paint coating with epoxy finish and antibacterial and anticorrosive treatment
Electric articulated bed base with 4 independent planes, made with HDPE slats very resistant to deformation and breakage
Adjustable central plane with regression
Knee plane with mechanical joint
Fowler position/Auto-countour
Anti-decubitus system, automatic regression of the backrest section
Night courtesy light
Patient control
Up/down adjustment: legrest, backrest
Synchronized backrest-legrest regulation (auto-contour)
Height adjustment
Function lock
Bed lighting
Headboard and footboard finish in beech (optional)
Folding handrails with design and security and locking systems (Optional)
Innovative wheel concept: easy and safe movement. Centralized and directional brake system
4 double faired wheels of Ø 100 mm
Folding handrails with design and safety systems, according to EN 60601-2-52 regulations (Optional)
Multiple ergonomic and safety positions
Maximum 86 cm: It can be raised up to 86 cm, which simplifies daily care interventions
Minimum 25 cm: can go down to 19 cm for optimal prevention against the consequences of falls
Dual LED Safety Positioning Light
IP66 protection against water and dust
Backrest with automatic stop with 30º angle
Nursing control panel that cancels functions
Controls with automatic disconnection
Anti-pinch system
Emergency descent safety system
Railings with automatic locking system
Technical file
Technical data
- External dimension: 206 x 100 cm
- Patient surface dimension: 190 x 90 cm
- Height adjustment: 25 x 86 cm
- Backrest tilt: 65º
- Legrest tilt: 45º
- Backrest/legrest sections auto-regression: 15 cm / 5 cm
- Maximum weight load: 230 kg
Electrical characteristics
- Power supply: 240-110V 50-60Hz
- Maximum Consumption: 1.6 A, 370 Volt
- Protection indicator: IP66
- Protection class: Class ll
- Degree of protection against discharge: TYPE B
Accessories
Included accessories
Pins
Lateral arches
Drain bag supports
Cable strip
Accessory holder
Bumper holder
Optional accessories
Siderails
Headboard and footboard
Bed extension: +/- 20 cm
Normative
The VIDA ST bed meets the C.E. marking requirements, in the terms and conditions established in the new Regulation 745/2017, which regulates medical devices
The manufacturing process has been carried out in accordance with the Quality Management System implemented in the organization in accordance with the EN ISO 9001:2015 standard and EN ISO 14001:2015 environmental standards
