Characteristics
category
Bed base
Comfort
Managament
Upholstery

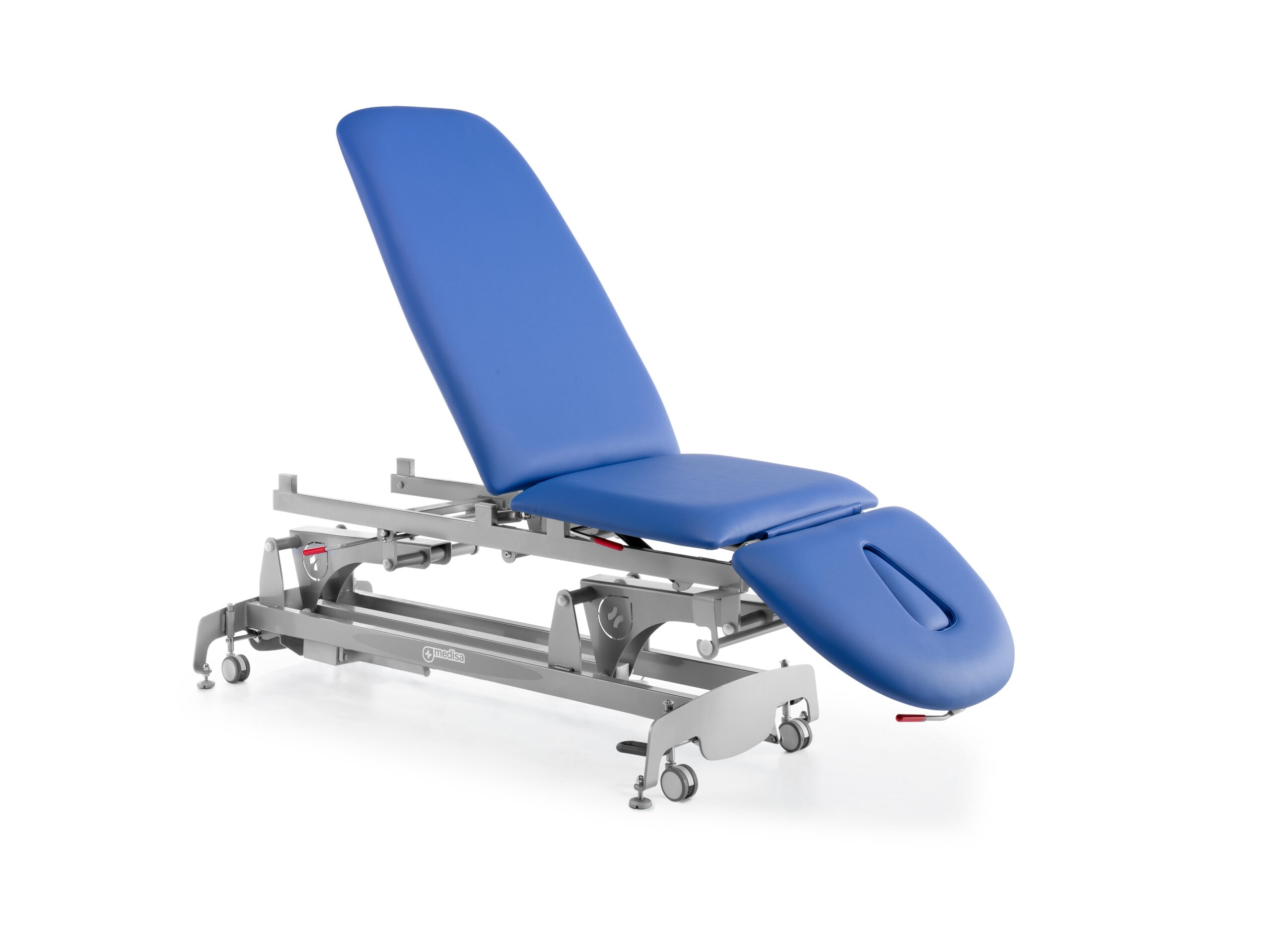

Examination and treatment stretcher, specially designed for use in consultation rooms, treatment rooms, and emergencies, easy and simple to use.
Extremely strong and stable high-quality steel tube structure with epoxy coating.
Lifting system using a hydraulic pump with bilateral pedal operation (hydraulic version) or low-consumption linear motor (electric version).
The Omega Advance stretcher’s bed frame lifting system offers great dynamic stability and load resistance, supporting up to 230 kg.

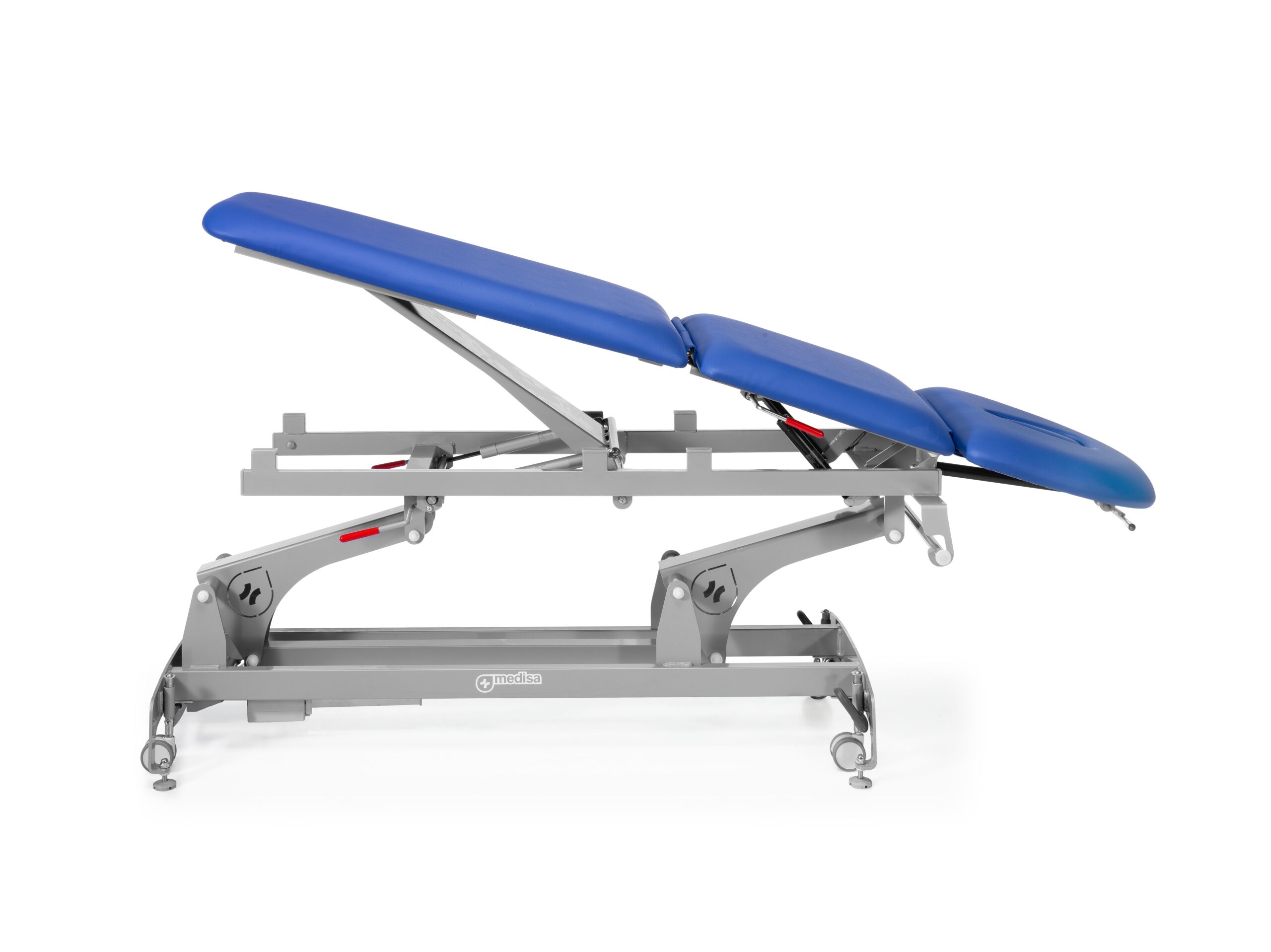

Bed base made up of THREE independent sections, with manual articulation in multiple positions and Trendelenburg movement using a double gas spring, which extends the life of the pistons and provides greater stability against lateral loads.
Rounded edges and seamless upholstery that prevents liquids from entering the interior and facilitates cleaning and disinfection.
Functionality, design, ergonomics, and comfort down to the smallest therapeutic details. Carefully tailored to daily activities, they add value to your practice.
Minimum stretcher height allows easy incorporation and transfer of patient.
Maximum height is especially suitable for medical personnel to perform any type of treatment.
Adjustable sections by pneumatic drives via levers with ergonomically non-slip handles.
The pneumatic springs are activated by pressing the cushions up, locking automatically when the handle is released
Ergonomic opening for breathing with padded lid
Padding made of high-density polyurethane foam
Multiple positions and angles that allow any type of treatment to be performed
Bilateral adjustment by gas pistons with locking at any height
- Height adjustment:
Hydraulic version: Height adjustment via hydraulic system, which allows operation on both sides of the stretcher with a bilateral pedal.
Electric version: Height-adjustable, motor-driven, with continuous movement and foot control on both sides of the stretcher. (*Hand control available, please consult).
Double swivel wheels, 65 mm diameter, retractable using bilateral pedal, with retractable locking/unlocking system
Highly efficient centralized simultaneous braking
Legs with non-slip feet and adjustable levelers to compensate for uneven floors. Made of flexible material that prevents shifting noise and damage to the floor
Waterproof, breathable and hypoallergenic
Latex free
Protective layer with anti-germ protection (antimicrobial, antibacterial, antifungal)
Impervious to water, human saliva, urine, blood and light
High level of abrasion resistance
Low temperature and light resistance
Fireproof protection: M2. EN 1021, Part 1 & 2. BS5852 Part 1
Wide range of colors. Standard color – Baltic blue
Technical file
Dimensions
- Dimensions: 202 x 68cm (Possibility of manufacturing in other dimensions, consult)
- Height adjustment: 45 -96cm (electrical)/ 52-96cm( hydraulic)
- Headrest inclination: 55º a -35º
- Central inclination: 22º/13º
- Foot inclination: 73º
- Trendelenburg: 18º
- Maximum load capacity: 230 kg
- Electric motor power: 8.000 N
- Hydraulic pump: 10.000N
Factory tolerance +/-1 cm
NOTE: The measurements and characteristics of the products presented may be modified without prior notice
Accesories
Included Accesories
Roll holder support
Foot control
Ergonomic breathing opening with padded lid.
Normative
All products manufactured by MEDISA comply with directive 2007/47/EEC on medical devices
All processes have been evaluated and certified according to the requirements of the UNE-EN ISO 9001:2008 standard for Quality Management and the UNE-EN ISO 14001:2004 standard for Environmental Management, and the UNE-EN ISO 13485 standard for medical devices. The quality management system.
