Characteristics
category
Generals
Comfort
Funcionality
Mobility

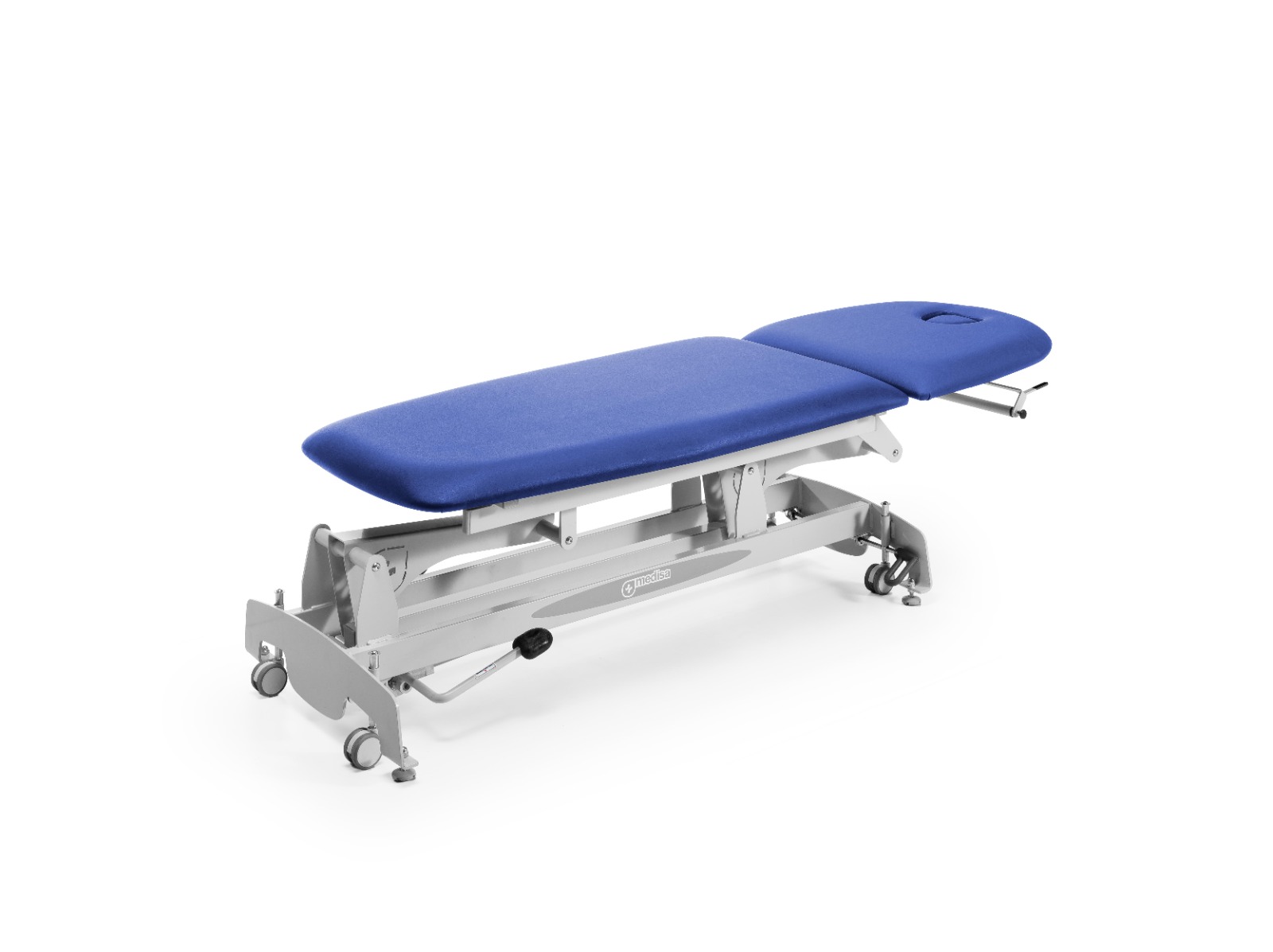

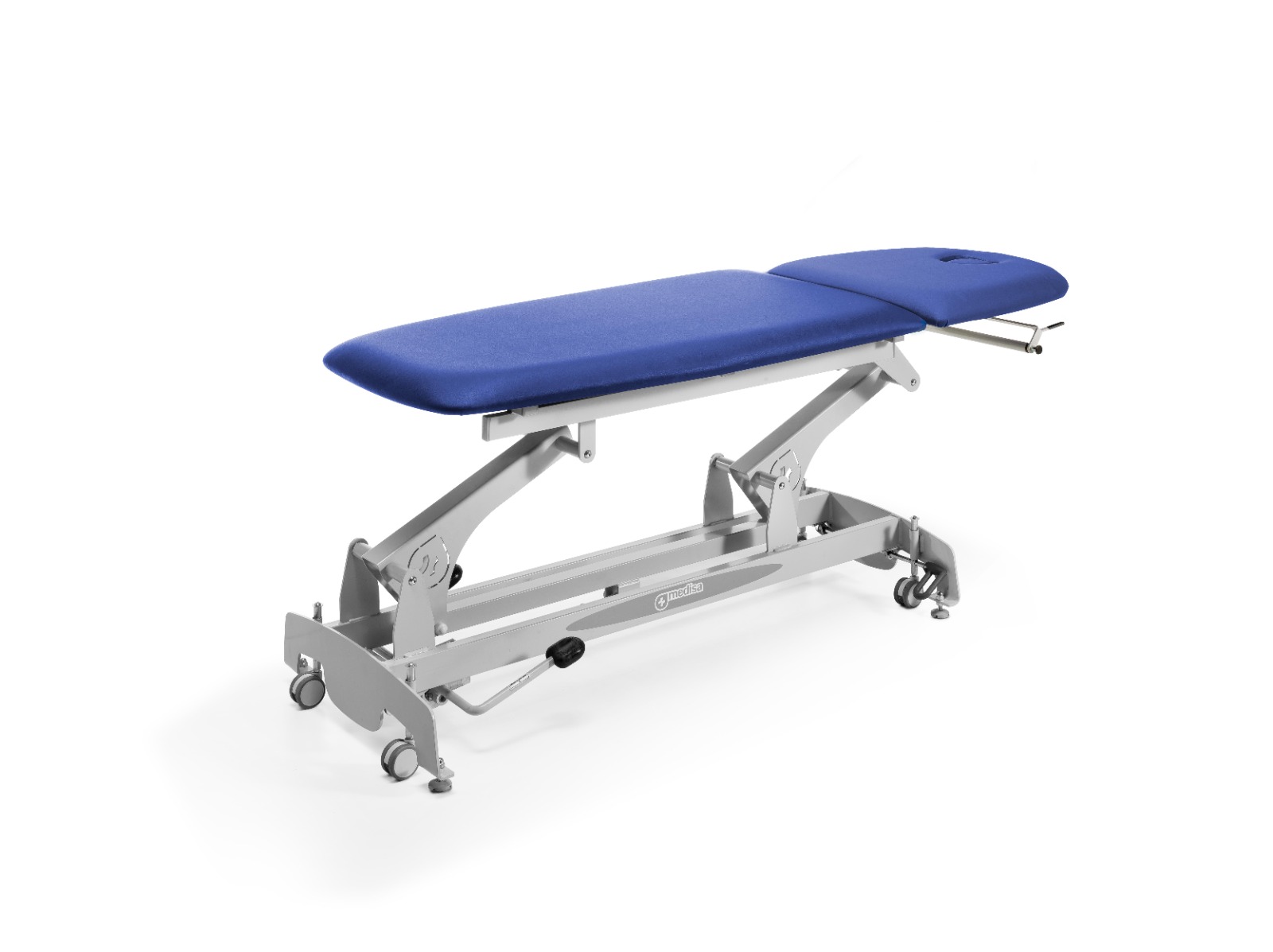

Plinth for examination and treatment, specially designed for use in consultations, treatment and emergency rooms, easy and simple to use.
Lifting system using a hydraulic pump with bilateral pedal operation (hydraulic version) or low-consumption linear motor (electric version).
Two independent sections with headrest articulated in multiple positions using a gas spring.
Extremely solid and stable high-quality steel structure, with epoxy coating.
The bed base lifting system has great dynamic stability and resistance to load, being able to support up to 230 kg.
Cushions: High-density flexible polyurethane foam padding. Lined with self-extinguishing vinyl fabric, antibacterial andresistant to absorption and stains. Fireproof according to M2 standard.
Rounded edges with no edges and seamless upholstery, which prevents liquids from entering the interior and makes cleaning and disinfection easier.
Adjustable backrest section by pneumatic drives via levers
Ergonomic breathing opening with padded lid
Padding made of high-density polyurethane foam
Upholstered in self-extinguishing vinyl fabric
Maximum seating space for both therapist and patient
Headboard/footboard with great firmness and stability against lateral loads

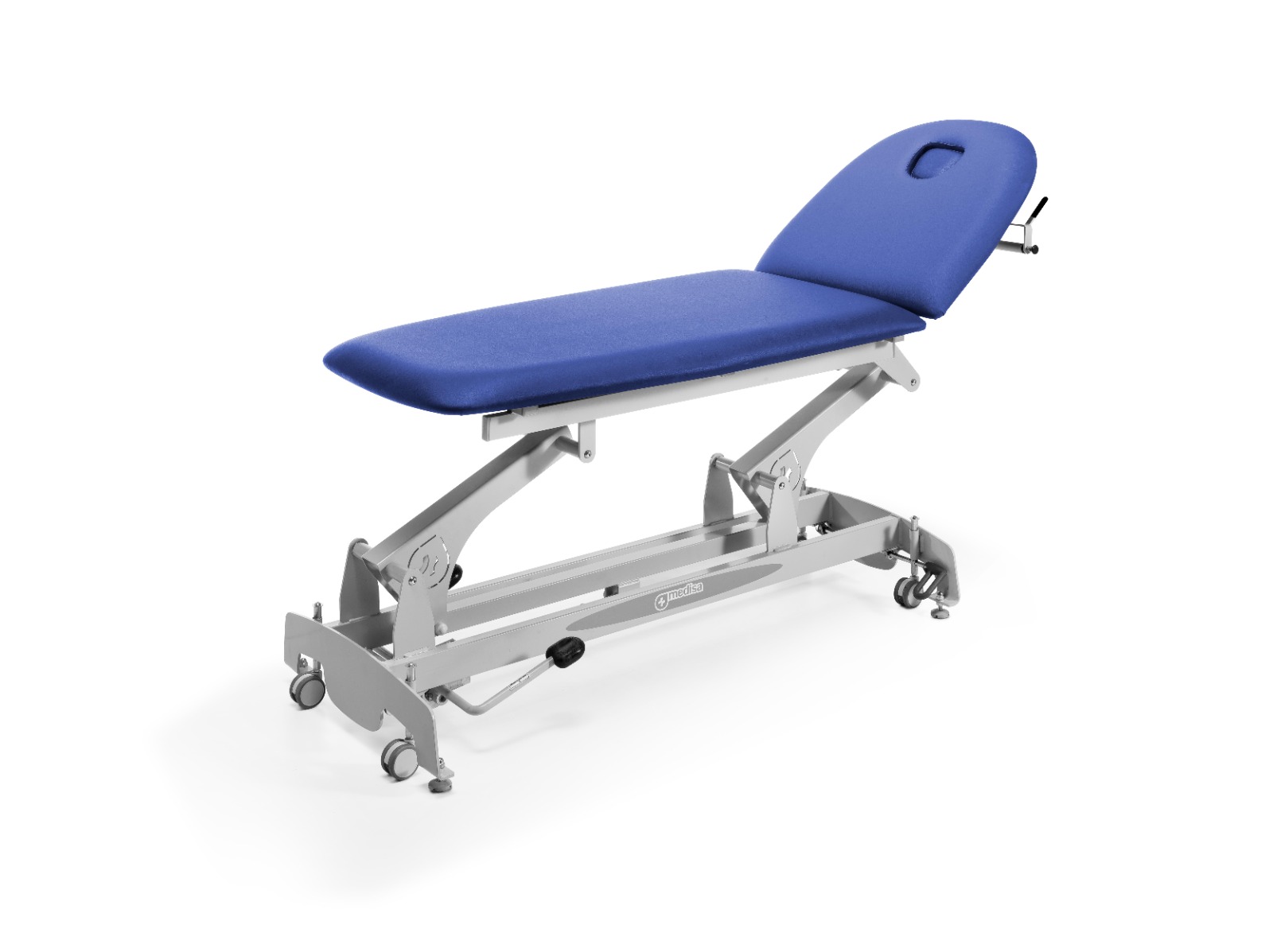

Adjustable by means of a gas spring in multiple positions and angles that allows any type of treatment to be performed

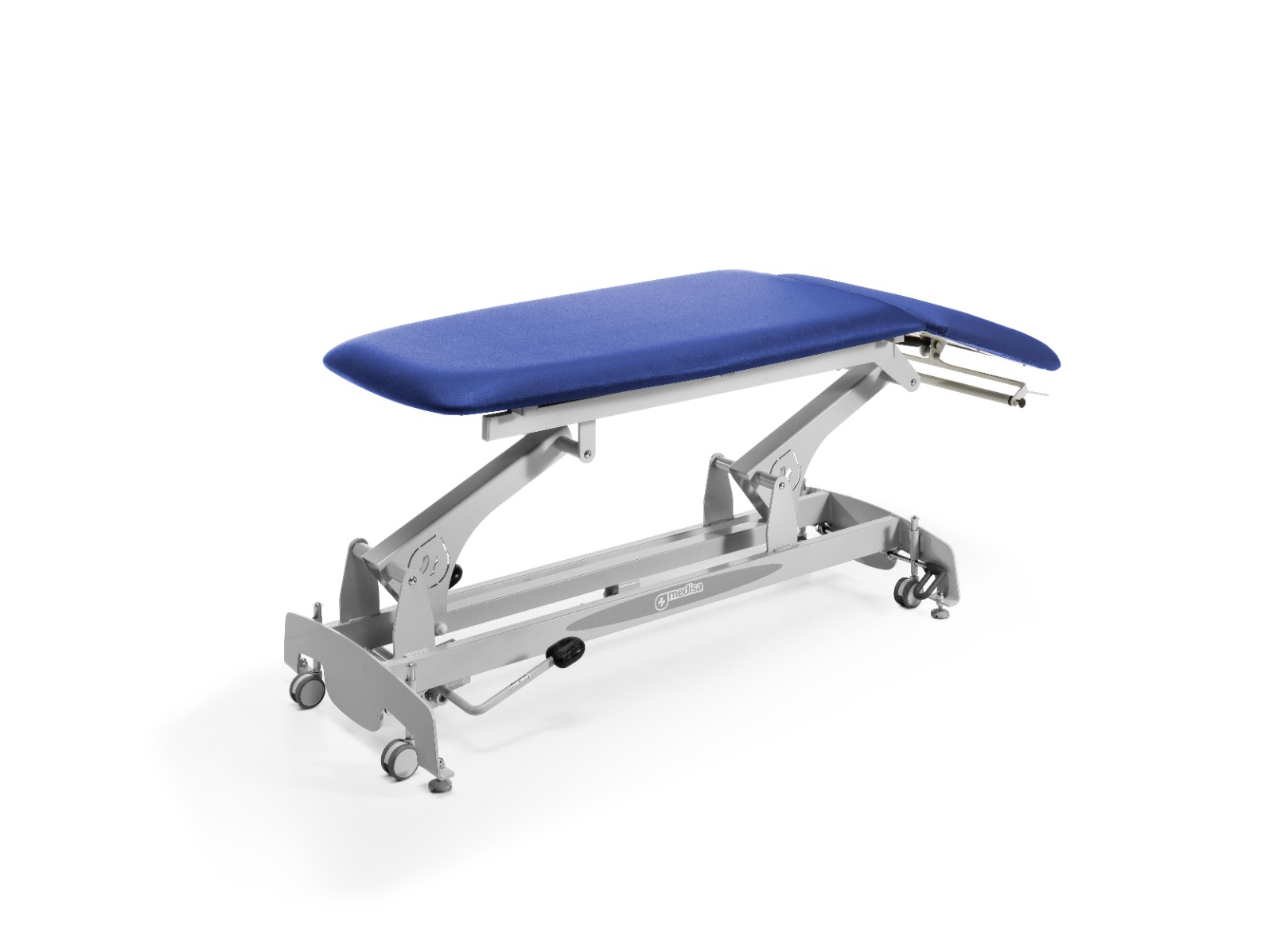

Tilting angle from -15º to 74º
Height adjustment through hydraulic system, whichallows operation on both sides of the plinth with bilateralpedal. (hydraulic version)
Adjustable height controlled by electric motor with continuous movement and operation on both sides of theplinth by foot control. (electric version).
Double swivel wheels, Ø 65 mm in diameter, retractable using bilateral pedal, with retractable locking/unlocking system and synchronized drive
Highly efficient centralized simultaneous braking
Legs with non-slip rubber and adjustable levelers on each leg to compensate for possible uneven floors.
Technical file
Technical data
- Dimension patient/bed surface: 196 x 69cm*
(Possibility of manufacturing in other sizes, upon request) - Height adjustment (ELECTRICAL): 46 x 98cm
- Height adjustment (HYDRAULIC): 50 x 97cm
- Headrest inclination: -15º to 74º
- Maximum load capacity: 230 kg
- Weight without accessories: +/- 45 kg
- Electric motor potential: 8.000N
- Hydraulic pump power: 10.000N
Factory tolerance +/-1 cm
NOTE: Measures and features of the products may be changed without prior notice.
Accessories
Included Accessories
Roll holder support attached to the structure.
Ergonomic breathing opening with padded lid.
Personalization product
Our products are customizable, each Hospital Center can include, remove or modify the specifications and options of our furniture (dimensions, wheel diameter Ø,color of the upholstery, thickness of the padding, finishes, accessories, etc. ) to fully adapt it to your installation and the needs of both the user and the staff, thus making an exclusive and different product.
Normative
The OMEGA BASIC transport stretcher meets the essential requirements of Regulation (UE) 2017/745 for medical devices and controlled under the quality management system EN ISO 9001-2015
Regulations: IEC/EN 60601-1 IEC/EN 60601-2
